10 tonner Ultra Truck SpecificationsThe Tata Motors Ultra range of trucks redefines the light trucking experience with their next-generation performance. Geared to provide customers with the best truck for their transportation needs, the Ultra range comes fitted with a wide range of world-class features that have become the benchmark in the trucking industry. The Ultra platform combines focus on driver comfort and safety with a powerful engine performance and is designed for a longer and more economic life cycle. Select a variant below for more details.

Select a model

Ultra 1014

Download Specification

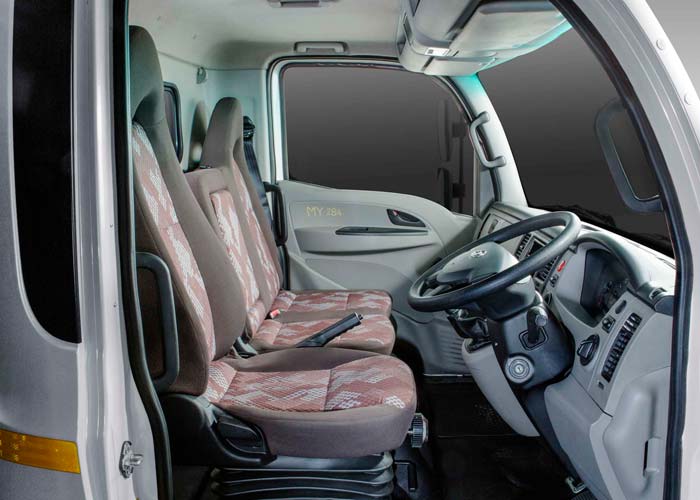

The Ultra 1014 comes powered with the new 3 L Common Rail engine with power & torque ratings of 140 PS and 390Nm respectively . The engine with its flat torque curves not only offers best in class fuel efficiency but has lowest NVH levels as well. Furnished with a spacious cabin, equipped with dash mounted gear shift lever and power steering, ensures that the Tata ULTRA is safe and comfortable for the driver. Additionally, the steering is tilt & telescopic type to suit to varying driver requirements.

SPECIFICATIONS		Ultra 1014
Engine		3L NG
Power		140PS @ 2600rpm
Torque		390 Nm @ 1400-2000rpm
Gear Box		G550
Clutch dia (mm)		330
Front Axle		Reverse Elliot type
Rear Axle		RA-1068 , Banjo Type
Suspension		Parabolic springs at front , Semi Elliptical with Parabolic Aux spring at Rear
Wheel Base (mm)		4530
Body Applications		Drop Side, Container, Traut Liners, Semi Insulated Box, Refrigeration Van, Cattel Van
GVM/GCM		10400
Features		HVAC, Suspended Seats, Music System, Driver Information System.
Vehicle Dimensions (LxBxH)		8250x2490x2590
